Apply Pressure & Flow with AMT’s 3″ Self-Priming High-Pressure Pumps

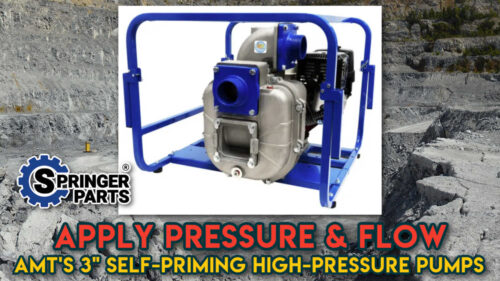

Introducing the latest edition to AMT’s line of Self-Priming High Pressure Pumps: the AMT® 3HY13HR. The 3 Inch NPT Aluminum Engine Driven High-Pressure High Flow Pump (also known as a Hydroseeder Pump) delivers both excellent pressure and flow for many applications including, but not limited to: general dewatering, agricultural spraying, hydroseeding, washdown, fire protection, and irrigation.
AMT’s single-stage centrifugal pumps are sand-cast aluminum construction with cast iron wear parts, male NPT ports, and EPDM/EPR Elastomers. They are available with gasoline engines, offered in both 3” and 4” models, and come standard with a heavy-duty steel frame, suction strainer, and designed for easy maintenance with a servicing tool included.
Features of the #HY13HR include:
- Sand Cast Aluminum Construction with Cast Iron Wear Parts
- EPDM/EPR Mechanical Seal, O-Rings, and Gaskets
- 3” or 4” Male NPT Cast Iron Suction & Discharge Ports
- Convertible High or Low Suction Port for Improved Efficiency Dependent on Self-Priming or Flooded Applications
- Built-In EPDM Flapper/Check Valve Permits Priming up to 20′
- Discharge Port Rotates 180° Increments
- Available with Honda E-Start Gasoline Engine
- Maximum Head up to 202′ TDH (87 PSI)
- Maximum Flow up to 560 GPM
- Includes Servicing Tool, Suction Strainer, and Heavy Duty Steel Frame with Battery Tray Included
3HY13HR SPECS:
- Pump Type: High Pressure Centrifugal
- Brand: AMT®
- Shipping Weight LBS: 220
- Shipping Length IN: 31
- Main Material: Aluminum
- Shipping Height IN: 25.1
- SKU: AT3HY13HRSP
- MPN: 3HY13HR
- Fuel Tank Capacity: 1.6 Gal 6.1 Ltr, not qt
- Driver Type: Gasoline Engine
- Shipping Width IN: 29.5
- Outlet Size: 3
- Inlet Size: 3
- Outlet Connection Type: NPT
- Run Time: 150.00 min
- Max FLow Rate: 560 GPM
- Power: 13
Improve your operation with excellent pressure and flow with a 3HY13HR 3″ NPT Aluminum Engine Driven High-Pressure High-Flow Pump from AMT. For more information or to receive a quote, contact SPRINGER PARTS today.
