Graco SaniForce 2.0 Air & Electric Double Diaphragm Pumps

Posted on by R Andrew Springer

SaniForce Electric Diaphragm Pumps

SaniForce Air Diaphragm Pumps

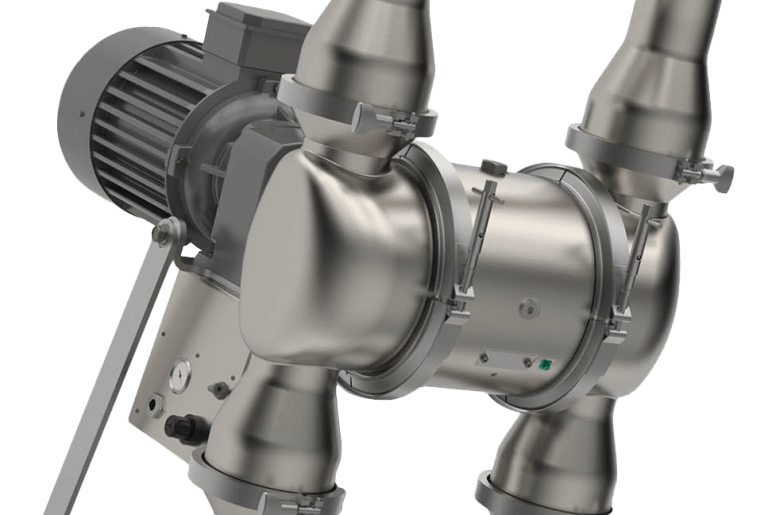

Graco EODD Hero Shot
  • Built to handle solids up to 3.8 inches (9.65 cm) in diameter
  • Fluid contact areas are FDA-Compliant and meet CFR Title 21
  • Suitable for applications in meat and poultry processing
  • Easy to clean, tri-clamp connections, for a quick knockdown design and minimal downtime
  • 3 and 4 inch sizes available in both air and electric operated models

Graco Advantage

  • Easier cleaning and sanitizing with fewer clamps and rotatable stand for easy draining
  • Stall free and easy service air valve
  • Durable pump construction handles particulates and abrasives in the material without damage to the pump
  • Electric options are up to 80% more efficient than air operated diaphragm pumps
  • Electric models offer worry-free pump design without rotatable seal prevents leaking and need for flushing
Series300040003000e4000e
Max fluid working pressure120 psi120 psi60 psi60 psi
Air pressure operating range20-120 psi20-120 psi 20-60 psi20-60 psi
Air inlet size1/2 in npt(f)1/2 in npt(f)3/8 in npt(f)3/8 in npt(f)
Max suction lift*Wet: 30′ – Dry: 10′Wet: 30′ – Dry: 10′ Wet: 30′ – Dry: 8.4′Wet: 30′ – Dry: 8.4′ t
Max size pumpable solids2.46 in3.8 in2.6 in3.8 in
Max free-flow delivery130 gpm130 gpm62.5 gpm62.5 gpm
