COMPRESSION HEAD AND HOMOGENIZING VALVE

• The Compression Head is manufactured from a single block of high-quality stainless steel of a special type, with a 5-year guarantee against cracking and defects. This makes for easy and fast maintenance
• The Pumping Pistons are coated with a special “Diamond-Like Carbon” plating (as a standard)
• The Interchangeable Valve Group assemblies are available in special materials depending on the products to be processed
• The Homogenizing Valves are designed to be energy efficient, with high stability and alignment of the moving parts (impact head) due to the hydrodynamic assembly, which ensures a vibration-free homogenization
• The Safety Valve, in sanitary configuration, is a spring-type with replaceable shutter and seat

MOTORIZATION – STRUCTURE

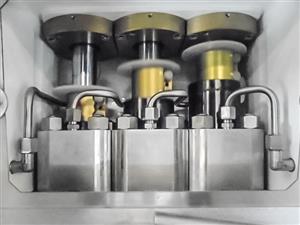

Homogenizer Pistons

• The Pump Body is made using a thick-walled premium-grade high-resistance cast iron, engineered to withstand heavy loads and cancel out vibration
• The Crankshaft is made from special steel, machined from a solid piece, which has been heat-treated and with superfinishing of the goosenecks and complete nitriding The crankshaft is supported by robust roller bearings (with bronze bearings used only on the crankpins)
• Power Transmission with a double reduction stage: “V” belts/pulleys, with parallel axes reduction gear
• 3 phase, 4 poles, AC electric drive motor from trusted brands
• Lubrication is Oil Splash type. The mechanical components are in oil-bath and the correct oil level is checked by a sight glass installed on the front side of the machine
• The Frame is made from square-section pipe frame in stainless steel execution, provided with separate stainless steel panels with a satin finish

INCLUDED EXTRAS

FBF Homogenizing Chamber

• Spares- An initial set of spare parts supplied with the machine include the following: Full set of gaskets, a set of springs for valves and a complete safety valve set
• Tools- Set of tools for ordinary maintenance
• Lubrication Oil
• Paper Work- Instruction and maintenance manuals (2 copies + CD ROM)

OPTIONS

• 2nd stage homogenizing valve controlled by a special oil-pneumatic system
• Digital pressure transducers and analog gauges with 4-20 ma output
• Variable Capacity (A stainless steel panel mounted directly above the machine)
• Fixed Capacity (internal electrical board)
• Aseptic Version with “sterility barriers” traced with steam condensate created by an integrated plant
• Pulsation dampeners on product inlet and/or outlet connections, for special aseptic version as well
• Pressure gauge with alarm contacts for the automatic cut-off of the homogenizing pressure, complete with a timing device to manage the start/stop of the homogenizing valves
• Automatic homogenization pressure controller

* Technical specifications are not mandatory and are subject to change without notice
